6ES7512-1CK01-0AB0

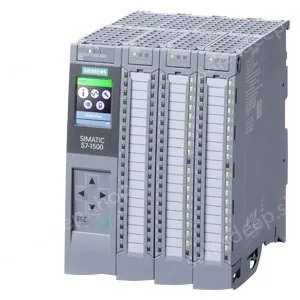

ProductArticle Number (Market Facing Number)6ES7512-1CK01-0AB0Product Description SIMATIC S7-1500 Compact CPU CPU 1512C-1 PN, central processing unit with working memory 250 KB for program and 1 MB for data, 32 digital inputs, 32 digital outputs, 5 analog inputs, 2 analog outputs, 6 high speed counters, 4 high speed outputs for PTO/PWM/frequency output 1. interface: PROFINET IRT with 2 port switch, 48 NS bit-performance, incl. front connector push-in, SIMATIC memory card necessaryProduct familyCPU 1512C-1 PNProduct Lifecycle (PLM)PM300:Active ProductPrice dataRegion Specific PriceGroup / Headquarter Price Group215 / 215List Price Show pricesCustomer Price Show pricesSurcharge for Raw MaterialsNoneMetal FactorNoneDelivery informationExport Control RegulationsAL : N / ECCN : EAR99HEstimated dispatch time1 Day/DaysNet Weight (kg)1,551 KgPackaging Dimension18,90 x 23,80 x 17,00Package size unit of measureCMQuantity Unit1 PiecePackaging Quantity1Additional Product InformationEAN4047623408642UPC804766662577Commodity Code85371091LKZ_FDB/ CatalogIDST73Product Group4500Group CodeR132Country of originChinaCompliance with the substance restrictions according to RoHS directiveSince: 29.03.2018Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.WEEE (2012/19/EU) Take-Back ObligationYesREACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead monoxide (lead oxide) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Silicic acid, lead s... CAS-No. 11120-22-2 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Silicic acid, lead salt Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number6aa21c3d-7fdf-412e-9965-f897eafcb71fClassifications

	Version	Classification
eClass	12	27-24-22-07
eClass	6	27-24-22-07
eClass	7.1	27-24-22-07
eClass	8	27-24-22-07
eClass	9	27-24-22-07
eClass	9.1	27-24-22-07
ETIM	7	EC000236
ETIM	8	EC000236
ETIM	9	EC000236
IDEA	4	3565
UNSPSC	15	32-15-17-05

SIMATIC S7-1500 Compact CPU CPU 1512C-1 PN, central processing unit with working memory 250 KB for program and 1 MB for data, 32 digital inputs, 32 digital outputs, 5 analog inputs, 2 analog outputs, 6 high speed counters, 4 high speed outputs for PTO/PWM/frequency output 1. interface: PROFINET IRT with 2 port switch, 48 NS bit-performance, incl. front connector push-in, SIMATIC memory card necessary

SIMATIC S7-1500 Compact CPU CPU 1512C-1 PN, central processing unit with working memory 250 KB for program and 1 MB for data, 32 digital inputs, 32 digital outputs, 5 analog inputs, 2 analog outputs, 6 high speed counters, 4 high speed outputs for PTO/PWM/frequency output 1. interface: PROFINET IRT with 2 port switch, 48 NS bit-performance, incl. front connector push-in, SIMATIC memory card necessary

SIMATIC S7-1500 Compact CPU CPU 1512C-1 PN, central processing unit with working memory 250 KB for program and 1 MB for data, 32 digital inputs, 32 digital outputs, 5 analog inputs, 2 analog outputs, 6 high speed counters, 4 high speed outputs for PTO/PWM/frequency output 1. interface: PROFINET IRT with 2 port switch, 48 NS bit-performance, incl. front connector push-in, SIMATIC memory card necessary
